GREASE AND STARCH SEPARATORS WITHOUT DESILTER CHAMBER

PURPOSE

Highly efficient grease and starch separators for underground installation, designed for separation of starch and fats of plant and animal origin from waste water. The most popular usage:

  •  catering facilities/food industry
  • meet packing facilities, meat processing facilities
  • restaurants, canteens
  • hotels, boarding houses
  • inns, wedding houses
  • fish and chips shops
  • fish processing plants
  • industrial cooking facilities
  • edible oils and margarine production plants
  • canneries
  • peanuts processing facilities
  • fast food producion facilities
  • cake shops, bakeries
  • porter-houses, fast food networks
  • soap and stearin factories

OPTIONS

  • Extension shaft: NSO 600, NSP 950
  • Round adapter – version A, B
  • Overflow and fat layer thickness alarms

TECHNICAL INFORMATION

Flow rate: 2-12 l/s
Tank volume: 1000 – 4300 l l
Material used: PE-HD
Resistance to fat acids
Easy cleaning
Lifting handles

AVAILABLE VERSIONS

separator tłuszczów

DELFIN ST 2

separator tłuszczów

DELFIN ST-4

DELFIN ST-7

separator tłuszczów

DELFIN ST-10

DELFIN ST-12

Symbol Flow rate
[1/s]
Tank volume
[l]
Inlet/outlet diameter
[mm]
Inflow height
[mm]
Outflow height
[mm]
Tank dimensions
[mm]
Number of manholes Cover
      D h1 h2 Lz S Hz
ST-2 2 1000 110 685 635 1600 1200 810 1 PKO 600
ST-4 4 1550 110 710 660 1530 1000 1220 1 PKO 950
ST-7 7 2100 160 1080 1030 1530 1000 1590 1 PKO 950
ST-10 10 3200 160 1140 1090 2250 1000 1600 2 PKO 950
ST-12 12 4300 200 1100 1050 2400 1200 1630 2 PKO 950

*Marketing and technical documents available on request – please ask Export Department

ACCESSORIES

Cover PKP 950

SIZE
L=0,945 m , I=0,745 m

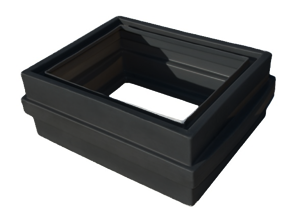

Extension shaft NSP 950

SIZE
L=0,960 m, I=0,760 m, H=0,425 m



Extension shaft NSO 600

SIZE
Dn=0,60 m, H=0,40 m

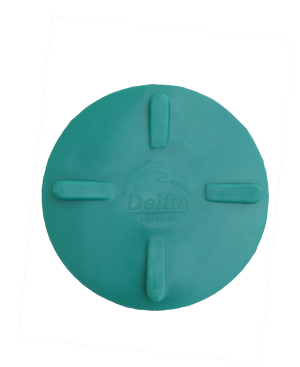

Cover PKO 600

SIZE
Dn=0,58

Adapter with one manhole A

SIZE
I= 1006 mm, L=832 mm, G=fi 600 mm, H1=40 mm, H2=150 mm

Adapter with two manholes B

SIZE
I= 1006 mm, L=1622 mm, G=fi 600 mm, H1=40 mm, H2=150 mm, R=200 mm

Adapter with two manholes C

SIZE
I= 1006 mm, L=1707 mm, G=fi 600 mm, H1=40 mm, H2=150 mm, R=285 mm

Choose DELFIN

  • 10-year warranty for the tanks
  •  Tanks made of high density polyethylene (PE-HD) which guarantee strenght and resistance to fatty  acids
  • High resistance to temperature changes
  • Easy transport – each tank is fitted with handles
  • Simple montage
  •  Quality of treated wastewater complian with the regulations
  •  Alarm systems
  •  Efficient operation and maintenance
  • Low emptying cost due to optimal tank volumes
  • Polyethylene covers or cast iron manhoIes
