PUMPING STATIONS

PURPOSE

The products are designed for installation and protection of technical equipment of the pumping station.
Household sewage pumping stations are designed to discharge sewage (municipal, sanitary, drainage and rainwater) over longer distances. It is also possible to lift sewage to a higher level, which means that they are used especially where the terrain, high level of ground water, large distance to the place of discharge, does not allow for their gravitational discharge.
Pumping stations can also be used for dewatering and pumping rainwater. The property’s sewage can be e.g. a household sewage treatment plant, a sewage system after the household sewage treatment plant, a septic tank or a septic tank.

Delfin offers pumping stations with or without equipment.

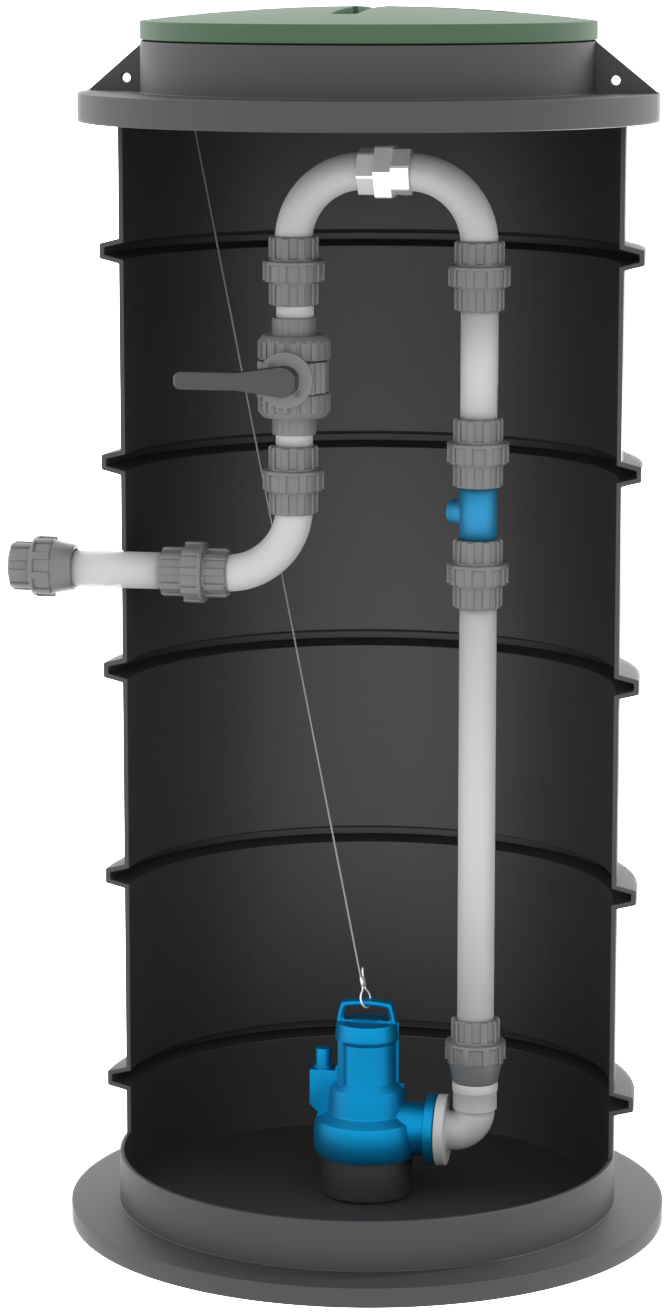

On request we offer completely equipped pumping station with:

pumping station casing
interior equipment (installation)
pump
control system

For raw sewage, pumps with a shredding system or open impeller with a free passage of at least 50 mm are mainly used.

TECHNICAL INFORMATION

Material used: PE-HD

Additional height adjustment of extensions

Polyethylene extensions and cover with twist closure

Design to increase the stability of the device in the ground

Pump selection according to customer requirements

AVAILABLE VERSIONS

SP 600

SP 800

SP 800 S

SP 1000/800

Symbol	Height [m]	Well diameter [m]	Outer diameter of the manhole [mm]	Weight [kg]	Diameter of the manhole bottom – cone version [mm]
SP 600	1100	600	580	22
SP 800	1080	820	700	35
	1400	820	700	42
	1700	820	700	49
	2000	820	700	55
SP 800 S	1400	820	700	39	470
	1800	820	700	46	470
	2100	820	700	53	470
	2400	820	700	59	470
SP 1000/800	1760	1000	700	61
	2055	1000	700	66
	2350	1000	700	71

*Marketing and technical documents available on request – please ask Export Department

ACCESSORIES

Extension shaft NSO 600

SIZE
Dn=0,60 m, H=0,40 m

Cover PKO 600

SIZE
Dn=0,58

Extension shaft NSO 800

SIZE
D=0,76 m, H=0,30 m

Cover PKO 800

SIZE

Dn=0,69 m

CHOOSE DELFIN

High-density polyethylene ensures tightness and protects the devices installed inside
Corrosion and frost resistance
Small dimensions, light weight
Cheap transport, simple montage
